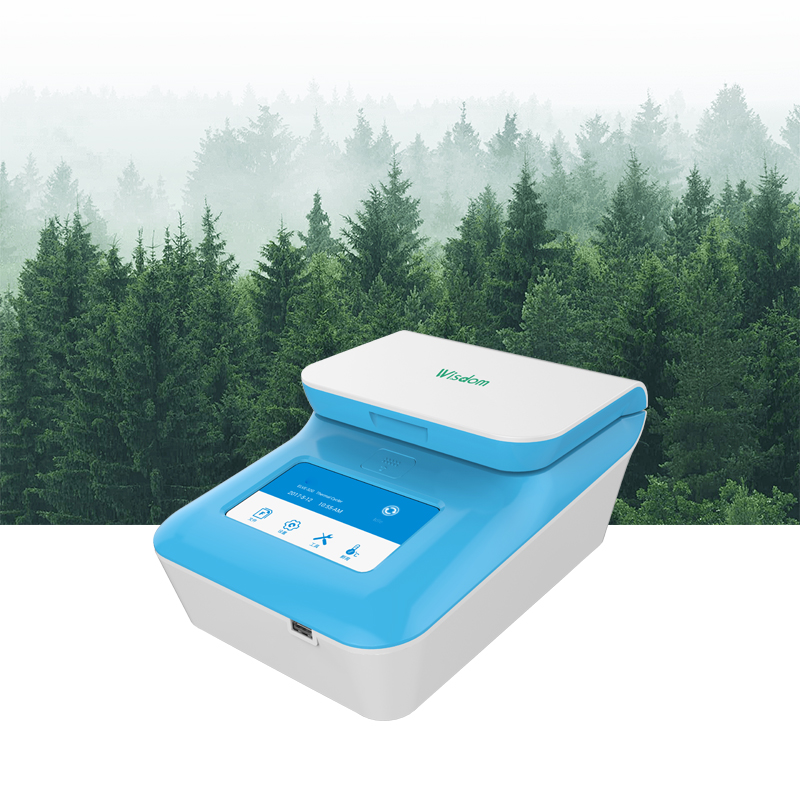

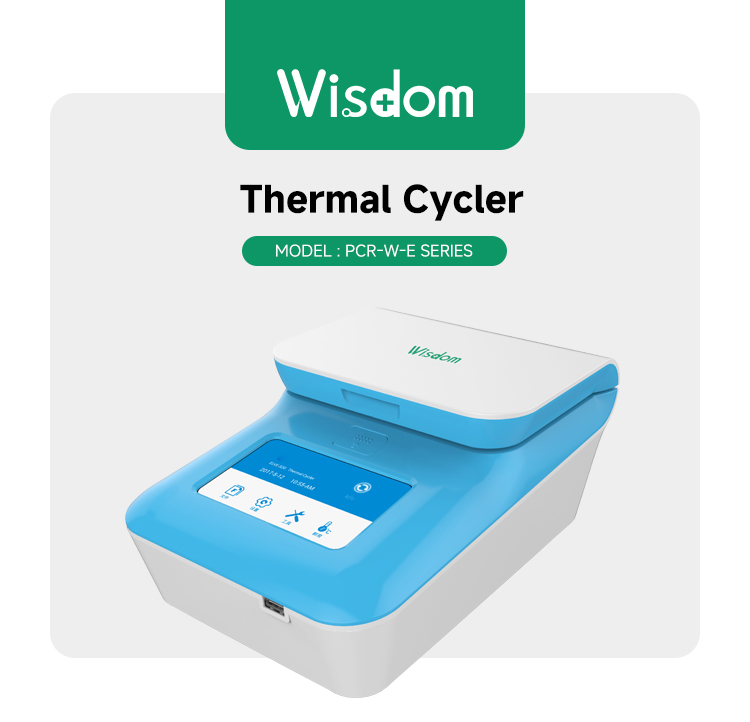

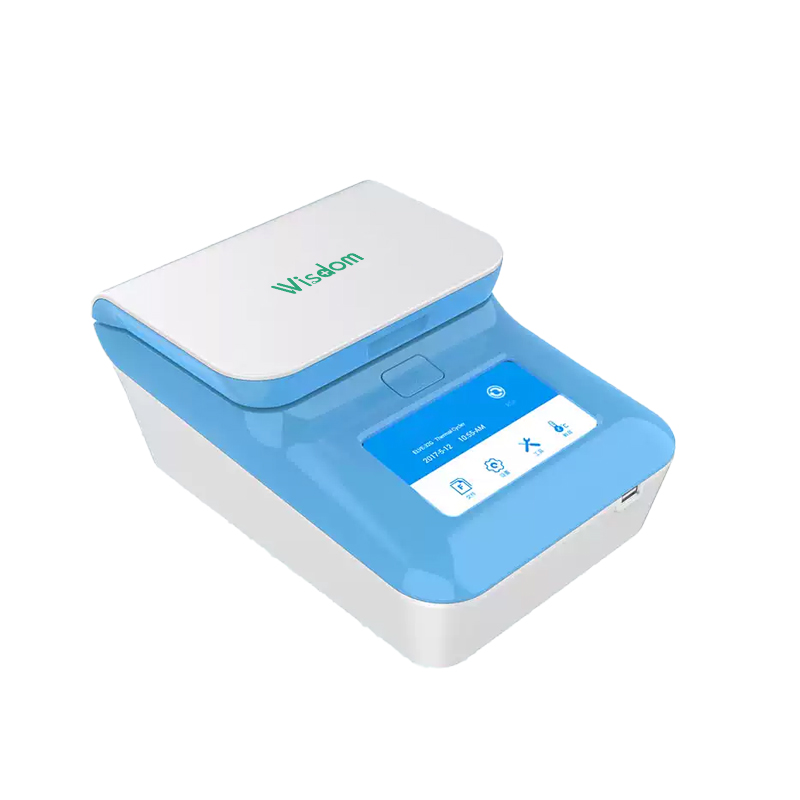

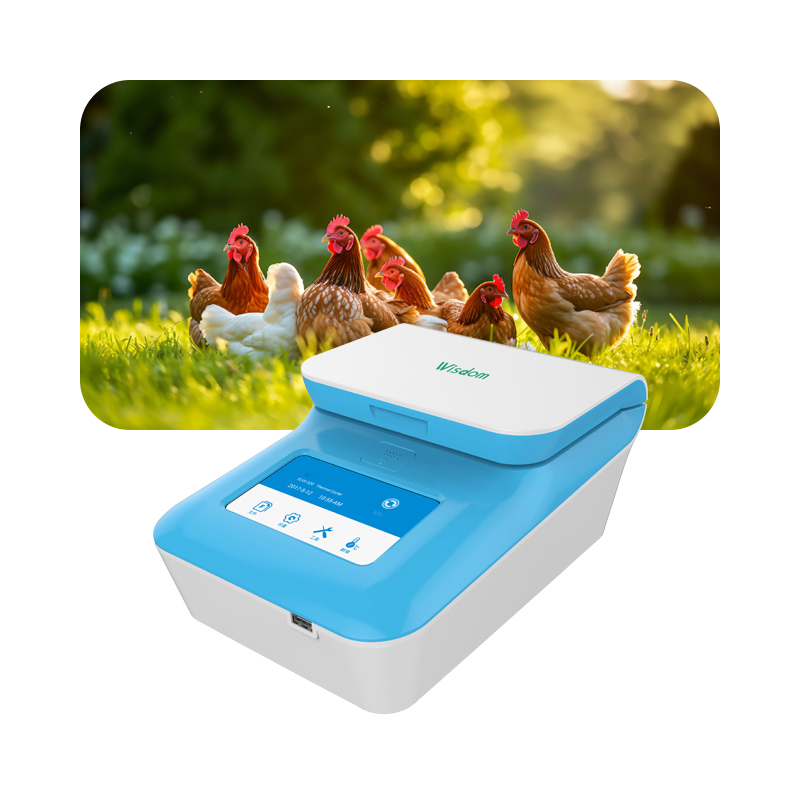

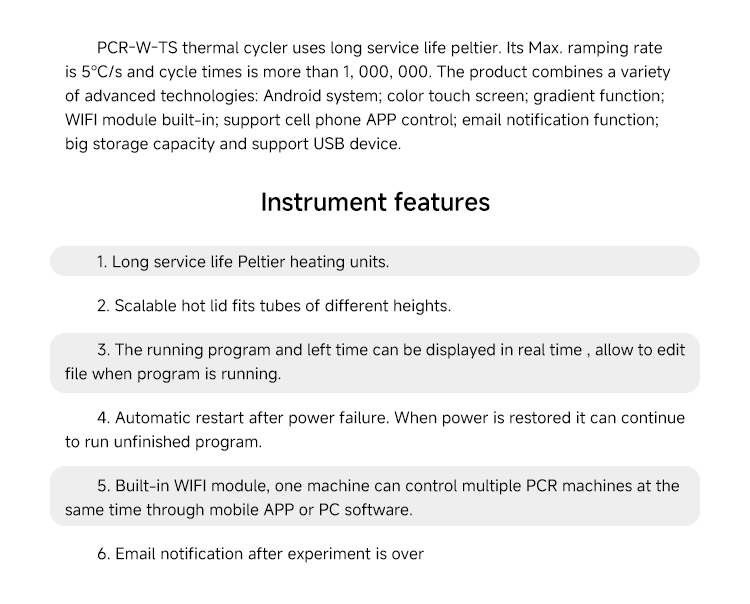

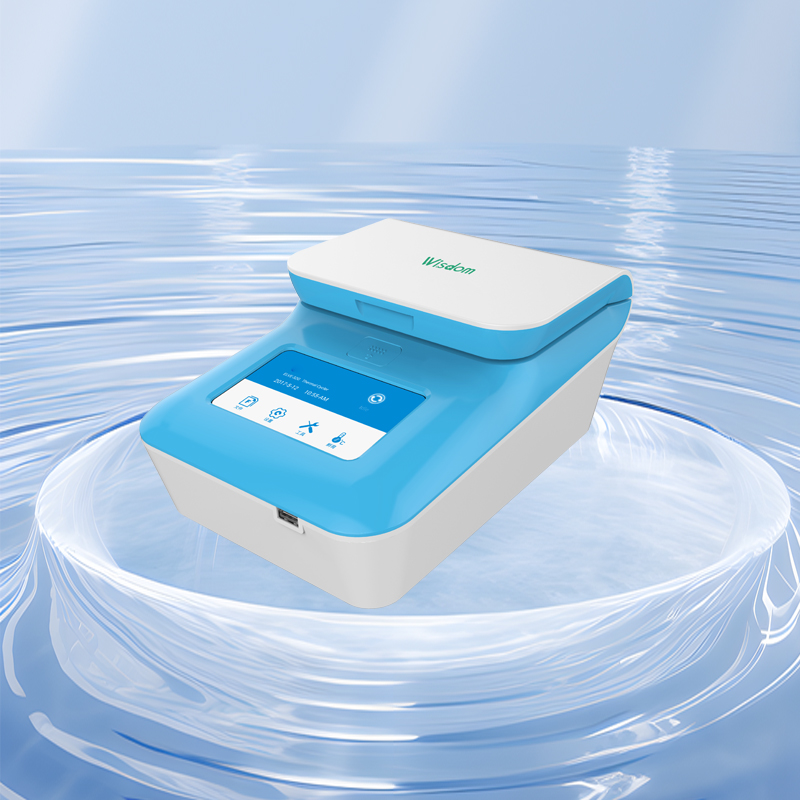

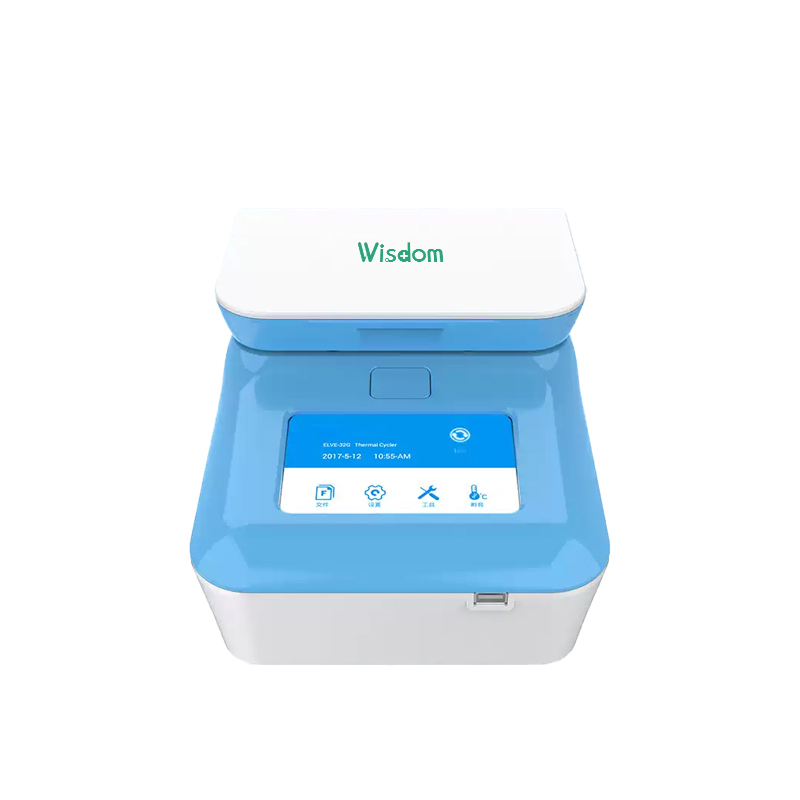

The Wisdom Scientific PCR-W-E Series Thermal Cycler is a high-performance PCR system featuring long-life Peltier heating units and a 5℃/s max ramping rate. It integrates an Android system with a color touch screen, supporting WIFI module and mobile APP control. Key features include a scalable hot lid, gradient function, and automatic restart after power failure. With email notifications and large storage capacity via USB, it ensures efficient, reliable DNA amplification for advanced molecular research laboratories.
Specification | ||
Model | PCR-W-E32 | PCR-W-E16 |
Capacity | 16×0.2ml(4×4 layout) | 32×0.2ml(4×8 layout) |
Formats | 0.2ml single tube | 0.2ml single tube, 8 strip |
Reaction Volume | 5-80ul | |
Temperature Performance | ||
Temperature Range | 4-100℃ | |
MAX. Ramp Rate | 5℃/s | |
Uniformity | ≤±0.2℃ | |
Accuracy | ≤±0.2℃ | |
Display Resolution | 0.1℃ | |
Temperature Control | Block/Tube | |
Ramping Rate Adjustable | 0.1-5℃/s | |
Hold at 4℃ | Forever | |
Gradient Performance | ||
Gradient Temp. Range | / | 30-100℃ |
Gradient Spread | / | 0.1-30℃ |
Hot Lid Function | ||
Hot Lid Temperature | 30-110℃ | |
Software Function | ||
Number of Programs | 10,000+(USB FLASH) | |
Max. No. of Step | 30 | |
Max. No. of Cycle | 100 | |
Time Increment/ Decrement | 1s-600s，Long PCR is available | |
Temp. Increment/ Decrement | 0.1-10.0°℃，Touchdown PCR is available | |
Pause Function | Yes | |
Auto Data Protection | Yes | |
Touchdown Function | Yes | |
Long PCR Function | Yes | |
Computer Software | Yes | |
Mobile phone APP | Yes | |
Other Performance | ||
LCD | 5 inch, 800x480 Pixels | |
Communication | USB 2.0，WIFI | |
Dimensions | 267mm×190mm×115mm(L×W×H) | |
Weight | 2.5kg | 2.6kg |
Power Supply | 100-240VAC, 50/60Hz, 120W | 100-240VAC, 50/60Hz, 200W |
