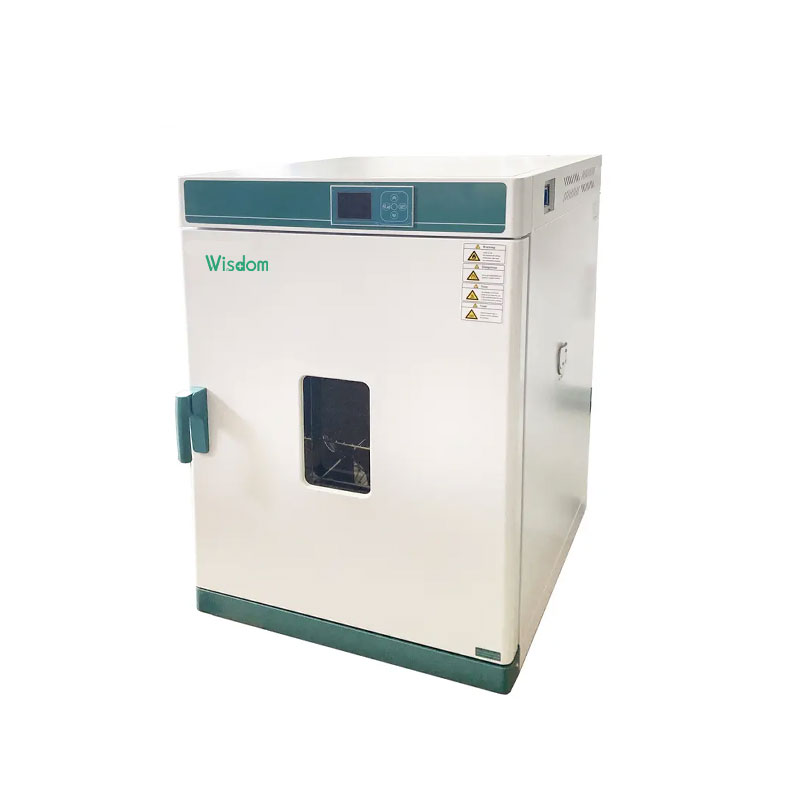

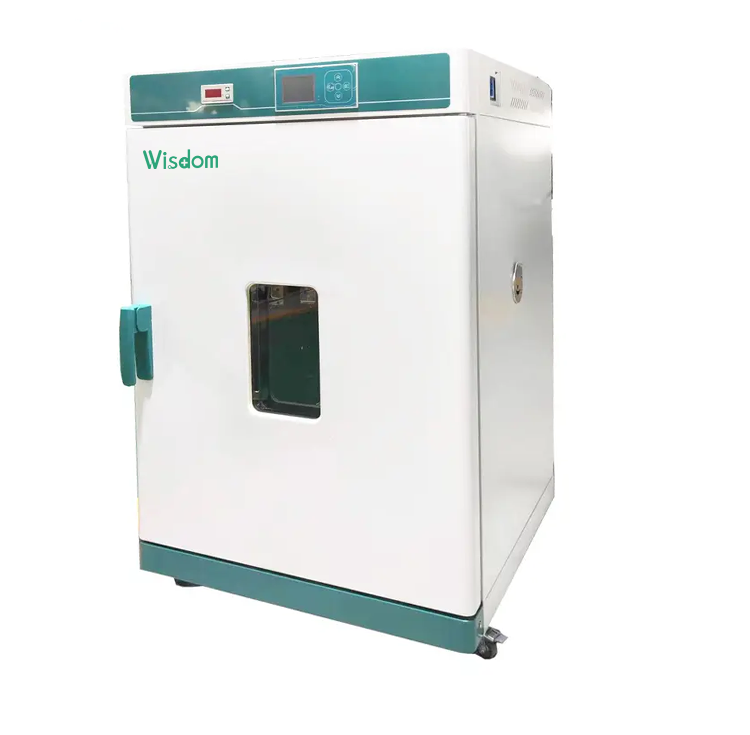

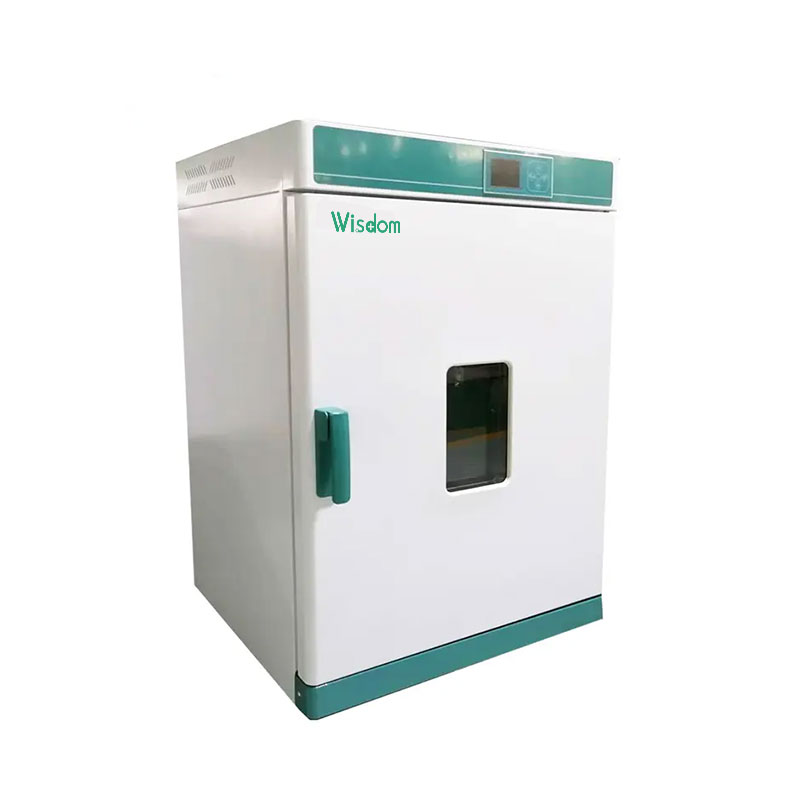

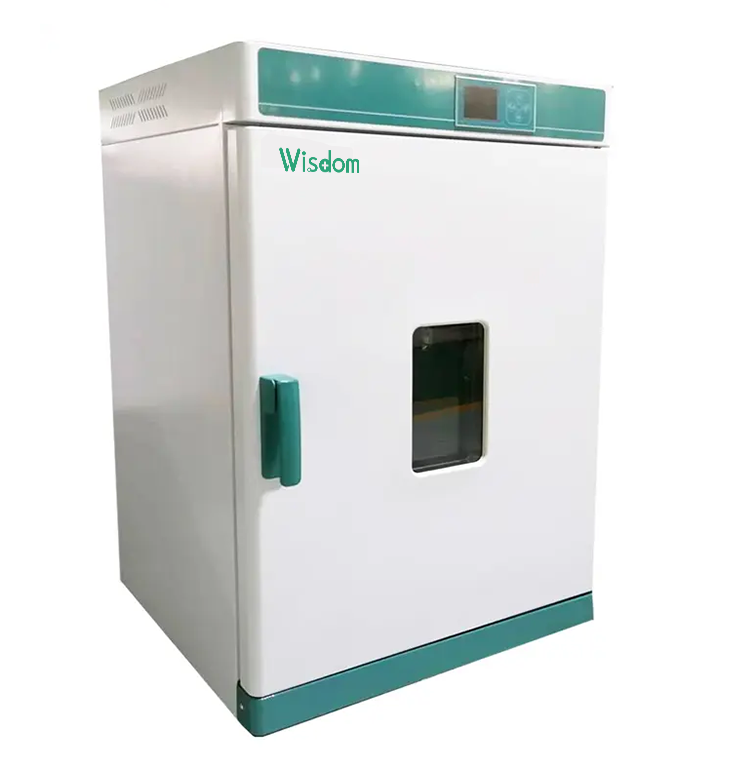

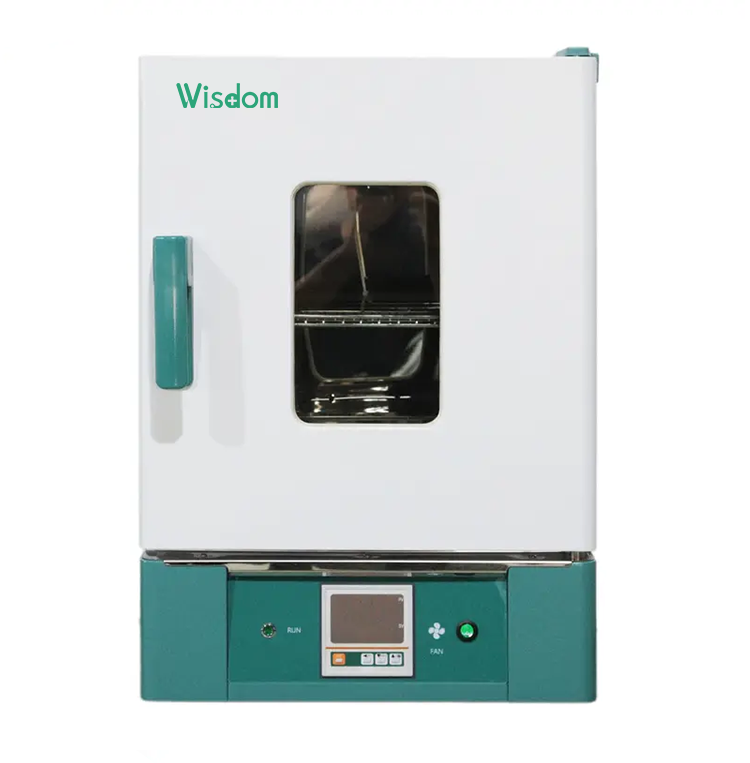

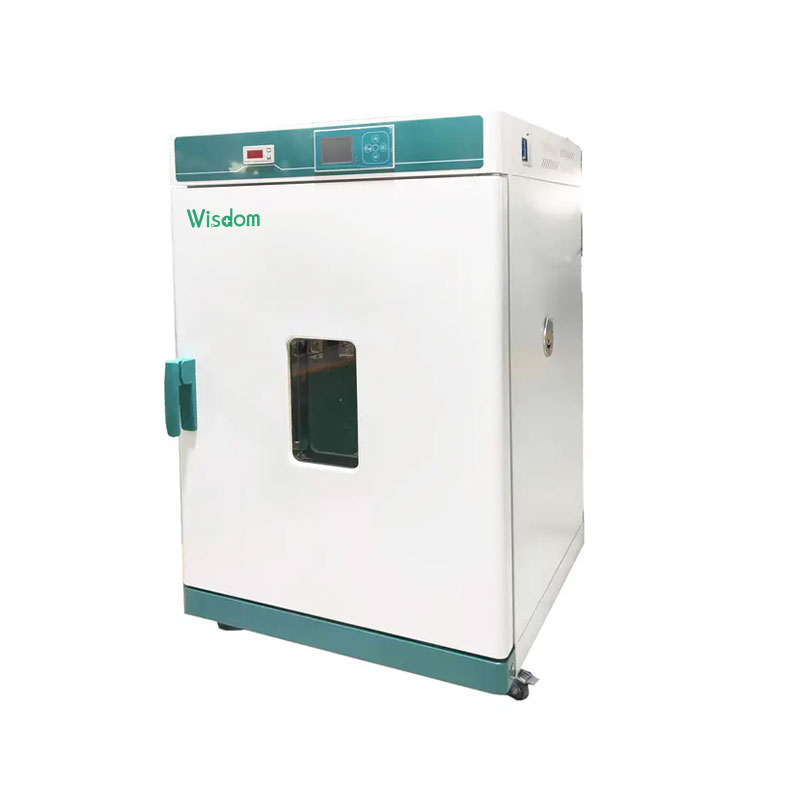

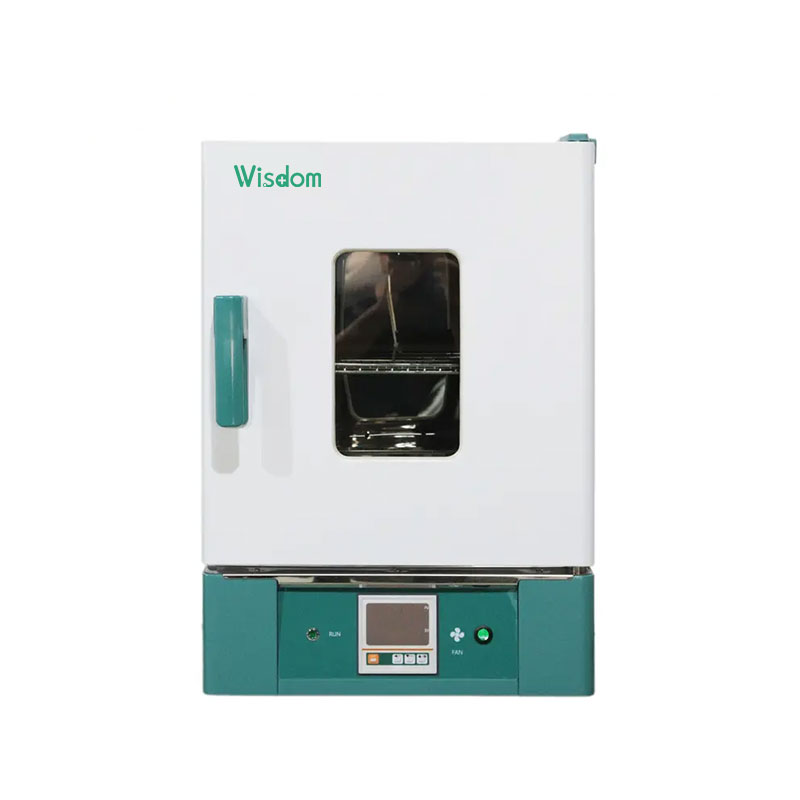

Forced Air Drying Oven

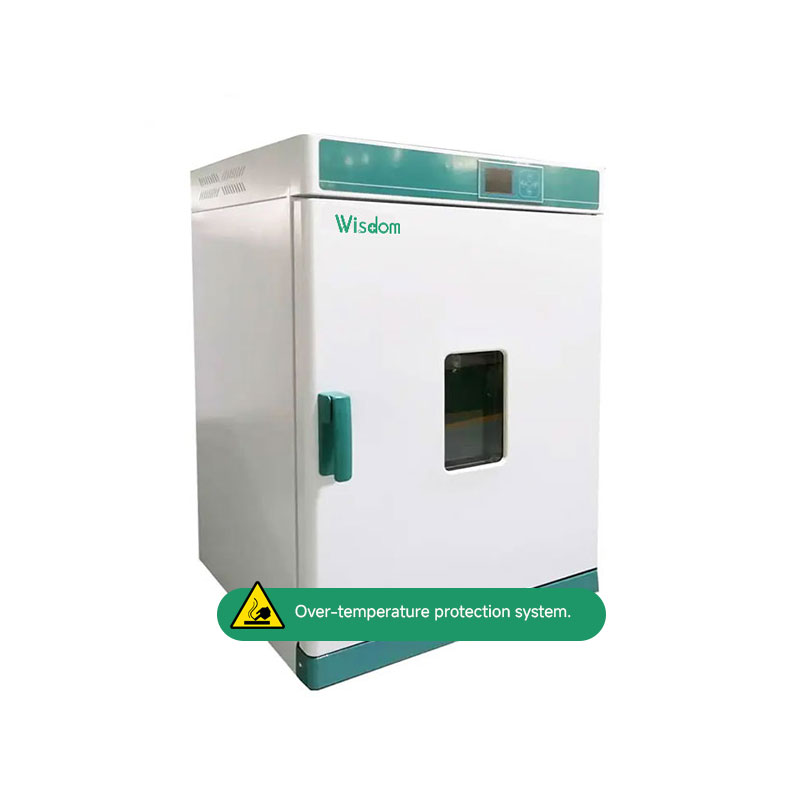

Wisdom Scientific DV-W-B and DV-W-BE series Forced Air Drying Ovens are high-performance solutions for drying, baking, and heat treatment in laboratory and industrial settings. Featuring a horizontal double air duct system for superior uniformity and a precision PID controller with over-temperature protection, these units ensure reliable thermal processing. The advanced BE series adds an LCD controller, 4-speed adjustable fan, and a high-precision independent temperature limiter. Constructed with a durable SUS304 stainless steel body and high-quality rock wool insulation, these ovens offer a temperature range of RT+10-300℃. With volumes ranging from compact 30L to large 625L models, they provide excellent temperature stability (±1 ∘ C) and uniformity (±2.5%) for diverse research and medical applications.

Main Technical Specifications: Forced Air Drying Oven
Model	DV-W-30B	DV-W-45B	DV-W-65B	DV-W-85B	DV-W-125B	DV-W-230B	DV-W-625B
Model	DV-W-30BE	DV-W-45BE	DV-W-65BE	DV-W-85BE	DV-W-125BE	DV-W-230BE	DV-W-625BE
Performance & Environment
Cycle Mode	Forced convection
Temp. Range	RT+10-300℃
Temp. Resolution Ratio	0.1℃
Temp. Motion	±1℃
Temp. Uniformity	±2.5%
Construction Materials
Inner Chamber	Mirror Stainless Steel
Outer Shell	Cold rolling steel electrostatic spraying exterior
Insulation layer	High quality rock wool board (with CE)
Heater	Stainless steel heater
Power rating	0.8kW	1.2kW	1.6kW	2.0kW	2.3kW	3.0kW	5.0kW
Exhaust hole	Φ35mm top (with function of test hole)					Rear exhaust	Top double exhaust
Controller & Display
Temp. control mode	Two temperature section PID intelligent
Temp. setting mode	Touch button setting
Temp. display mode	B model: Measuring temp. on 4 digital tubes upper row; setting temp. on lower row BE model: Measuring temp. on upper LCD screen; setting temp. on lower row
Timer	0-9999min (with timing wait function)
Operation function	Fixed temperature operation, timing function, auto stop
Capacity & Dimensions
Volume	30L	45L	65L	85L	125L	230L	625L
Inner Chamber size (WLH)	310310310	350350350	400360450	450420450	500450550	600500750	6607601250
Exterior size (WLH) mm	450500690	490540730	540550830	590610830	640640930	7358351115	9029421677
Shelf number	5	6	8	8	11	17	11
NW/GW (kg)	33/37	37/43	44/49	50/56	60/66	94/120	150/190
Power Supply
Power rating (50/60HZ)	AC220V/3.6A	AC220V/5.5A	AC220V/7.2A	AC220V/9.0A	AC220V/10.5A	AC220V/13.6A	AC380V/13.2A
Additional Functions & Accessories
BE Model Extras	LCD temperature controller, 4 grade 3 speed adjustable fan (230 and 625 models), High precision digital independent temperature limiter, SUS304 Stainless Steel Body.
Optional Accessories	B model: Spare Shelf. BE model: Spare Shelf, RS485 Interface, Printer, Program controller, U-disk storage, 3.5-inch color touch screen temperature controller.
